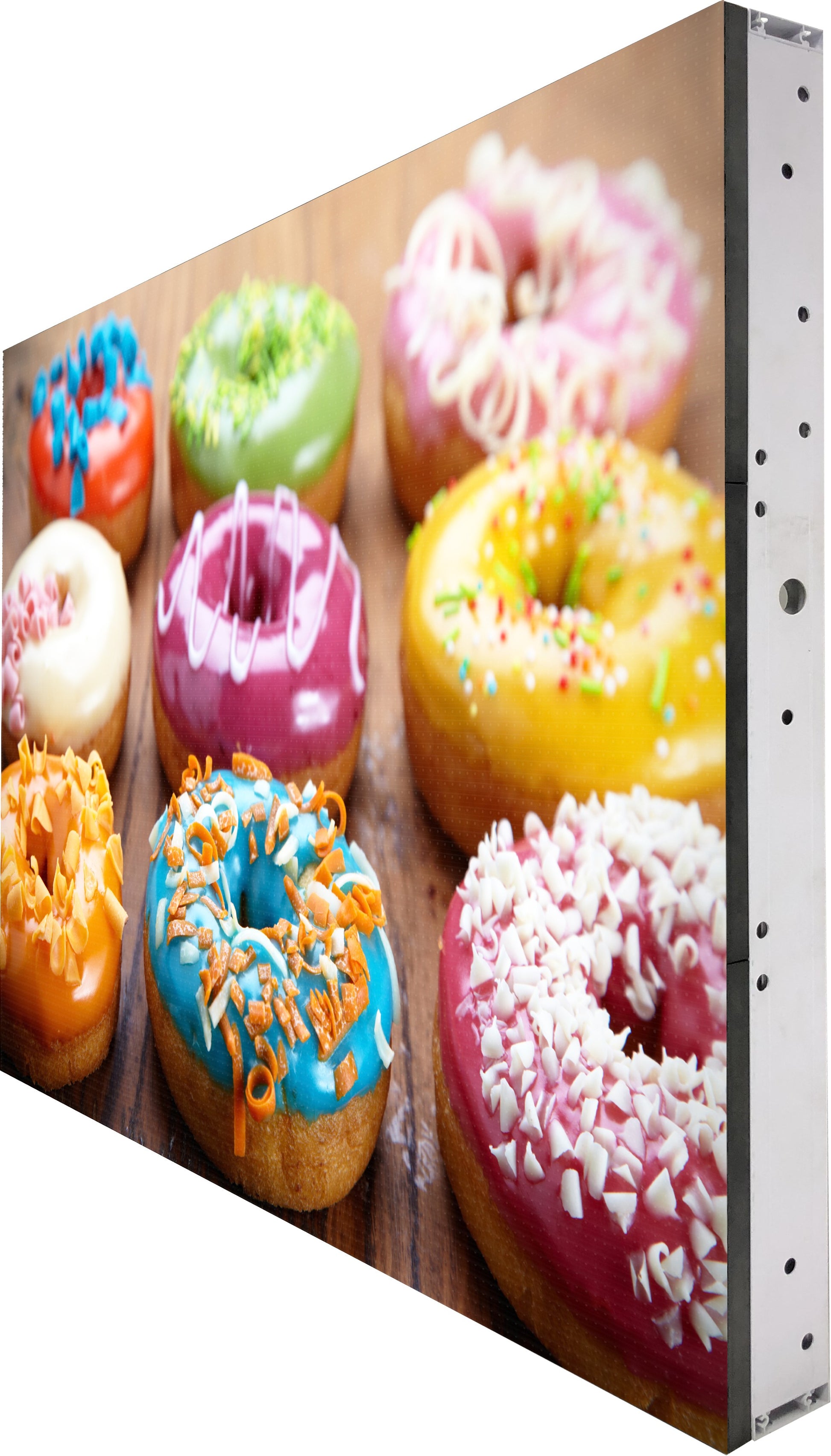

The LEDMAN N Series is a robust outdoor fixed LED display panel engineered for harsh environments. With high brightness, dual waterproof protection, and fanless design, it is ideal for permanent outdoor installations.

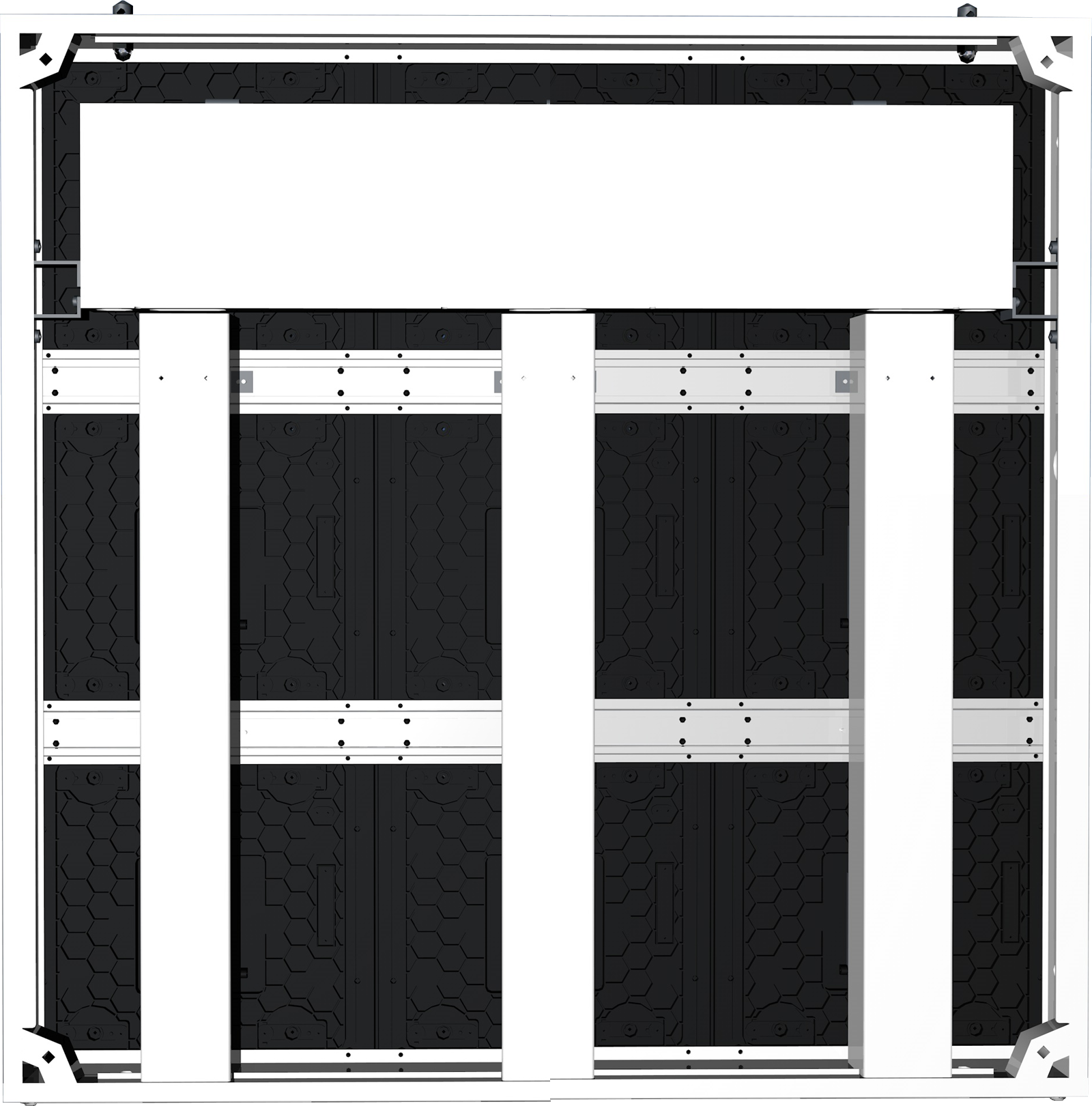

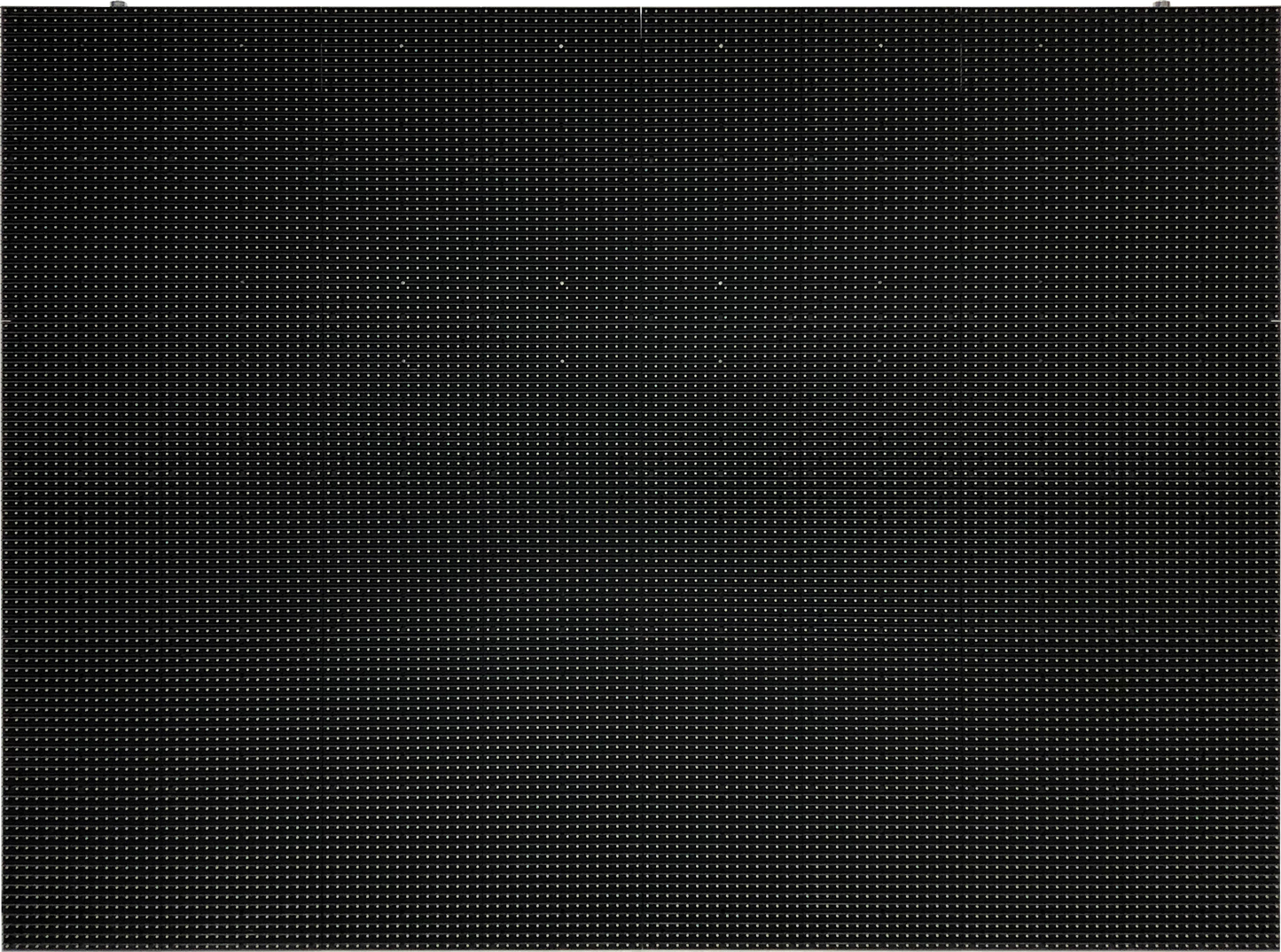

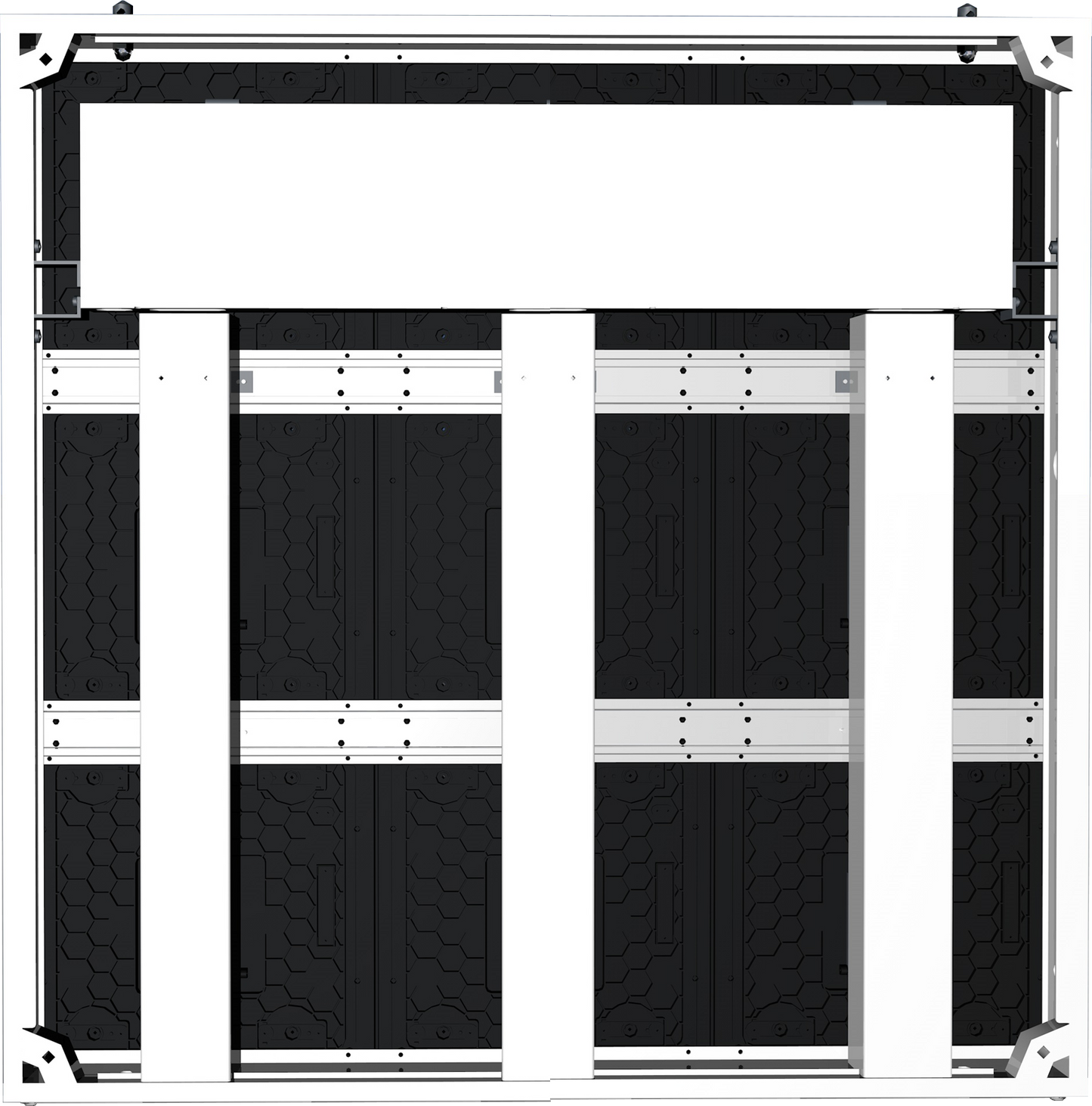

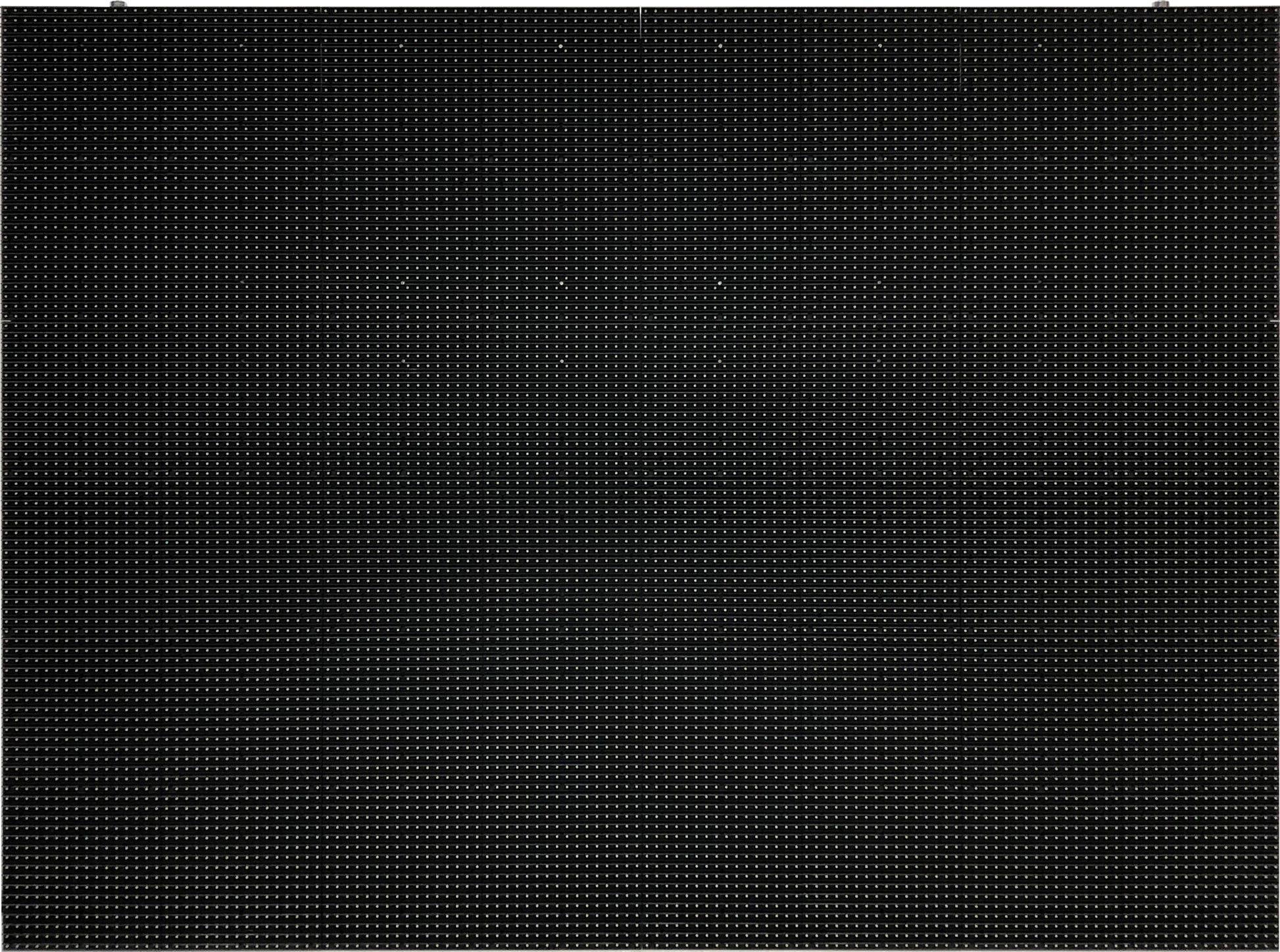

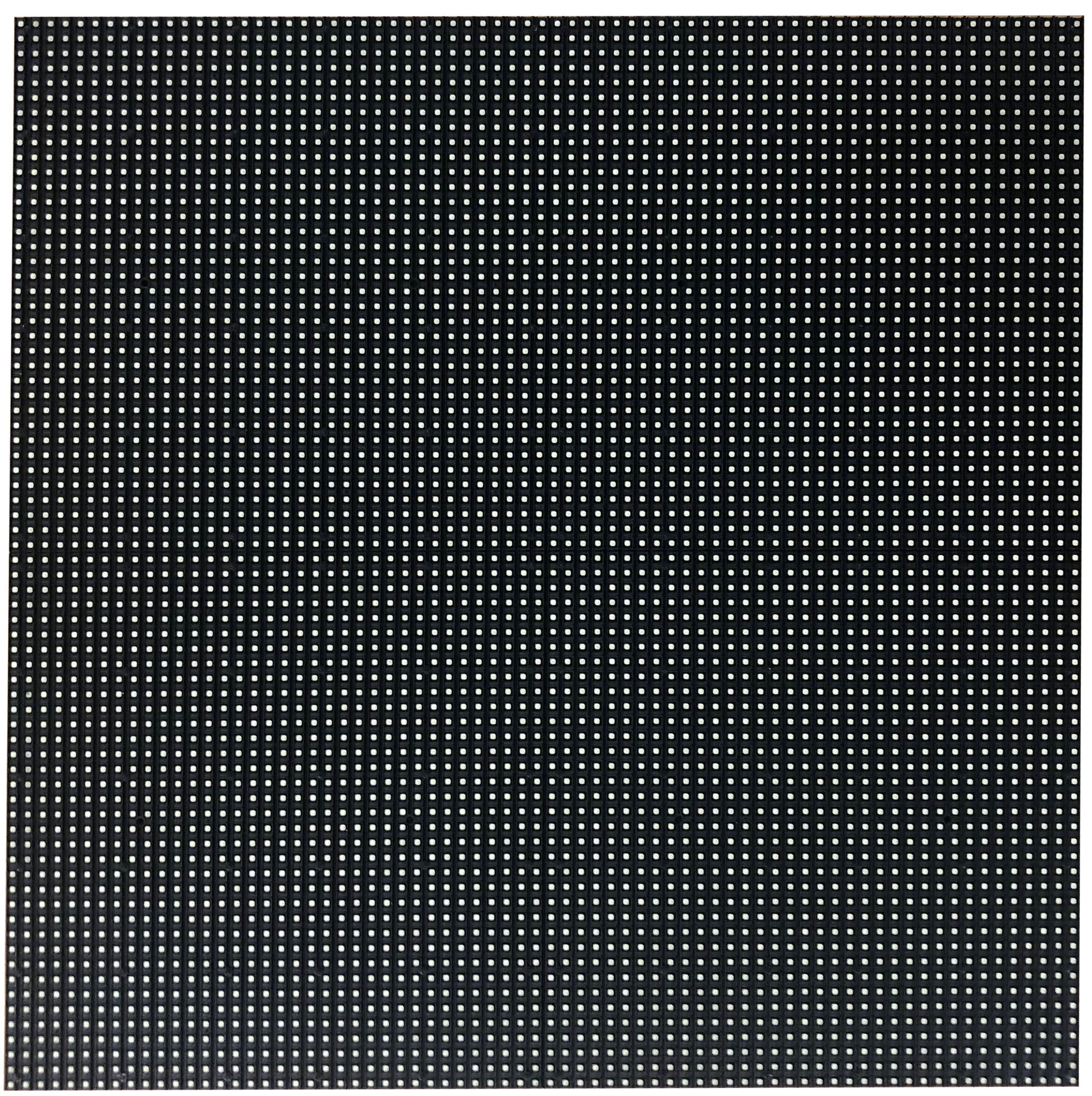

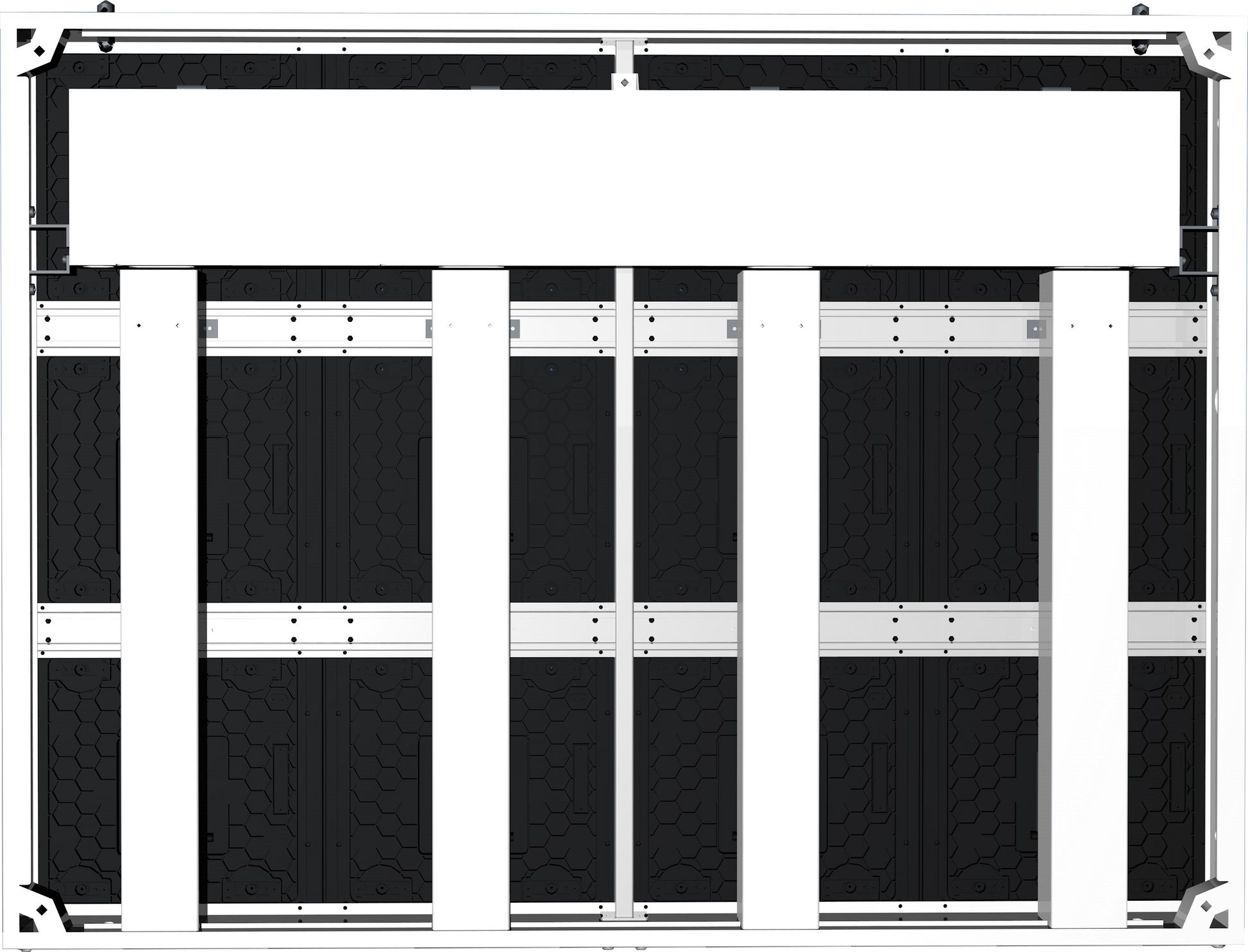

Cabinet sizes: 1280 × 960 mm, 960 × 960 mm, 960 × 640 mm, 1280 × 640 mm
Module size: 320 × 320 mm
Pixel pitch options: 4.44 mm, 6.66 mm, 8.88 mm, 10 mm
LED types: SMD1820, SMD2727
Refresh rate: 3840 Hz
Grayscale: 14–16 bit
Brightness: 5500–6500 nits
Protection: IP65 front / IP54 rear
Material: Aluminum profile

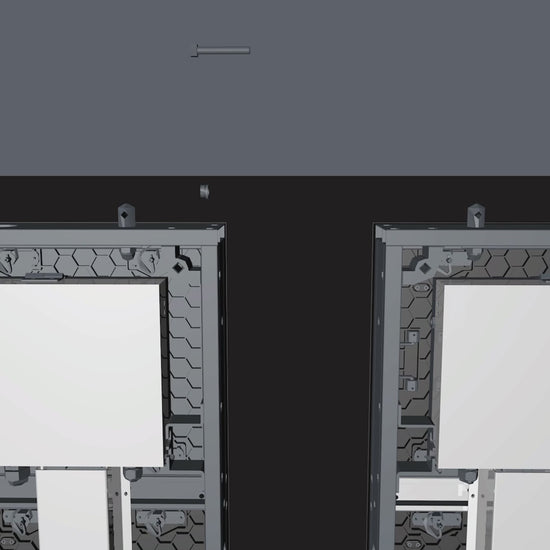

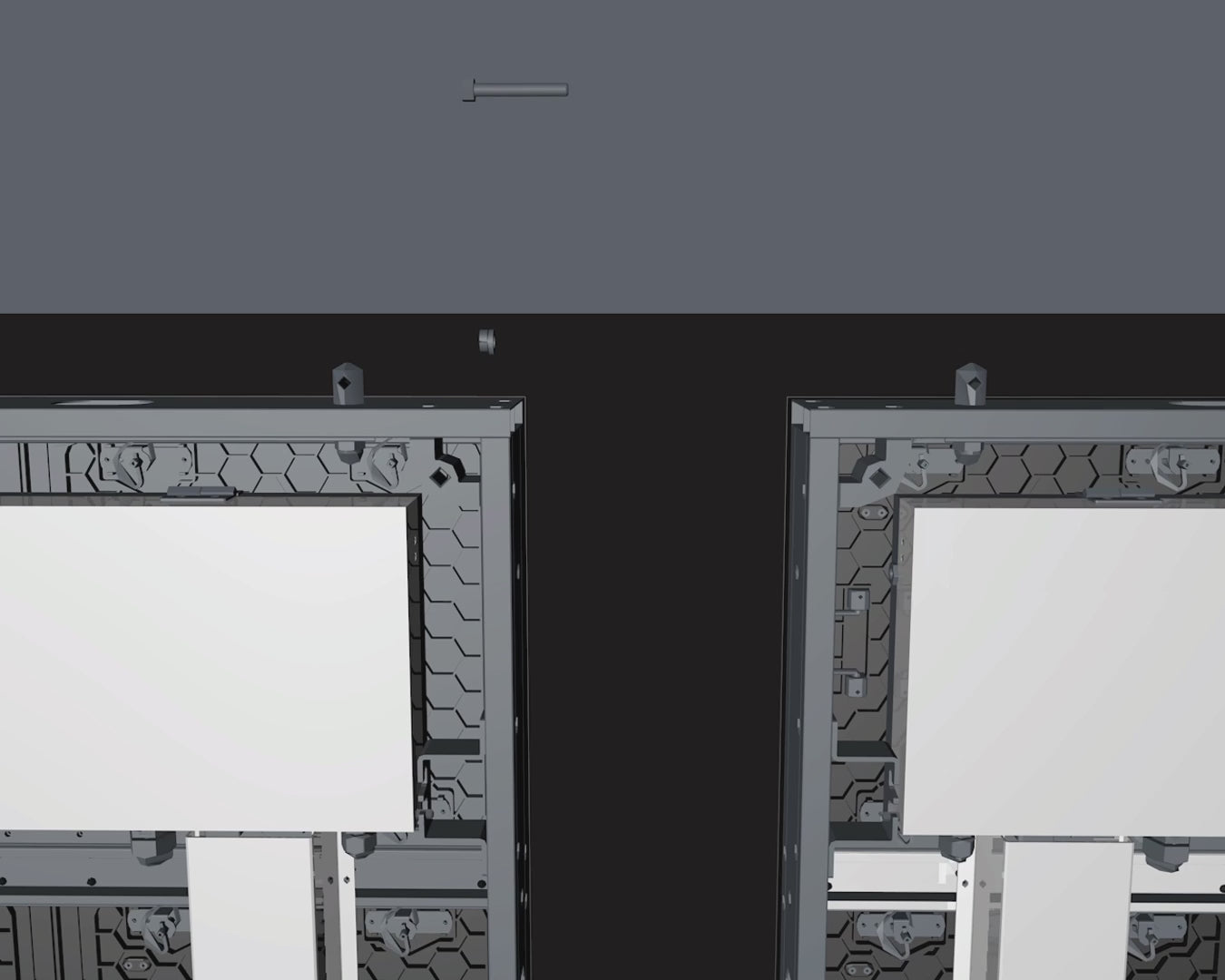

Maintenance: Front and rear access
Power: AC 100–240V, 50/60 Hz
Certifications: CE, ETL, FCC
Ideal for: building facades, stadiums, billboards, outdoor advertising, and digital signage.
