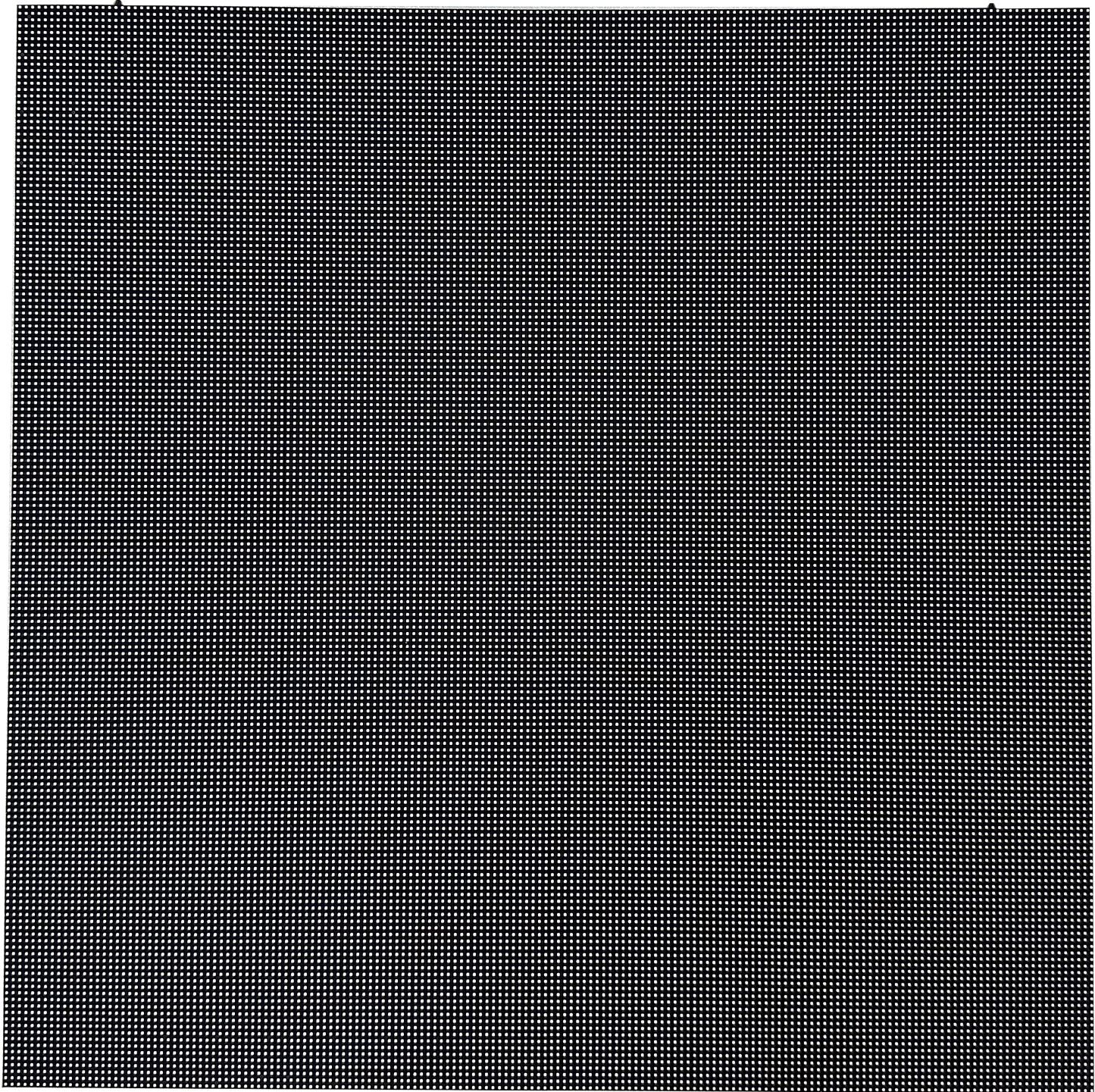

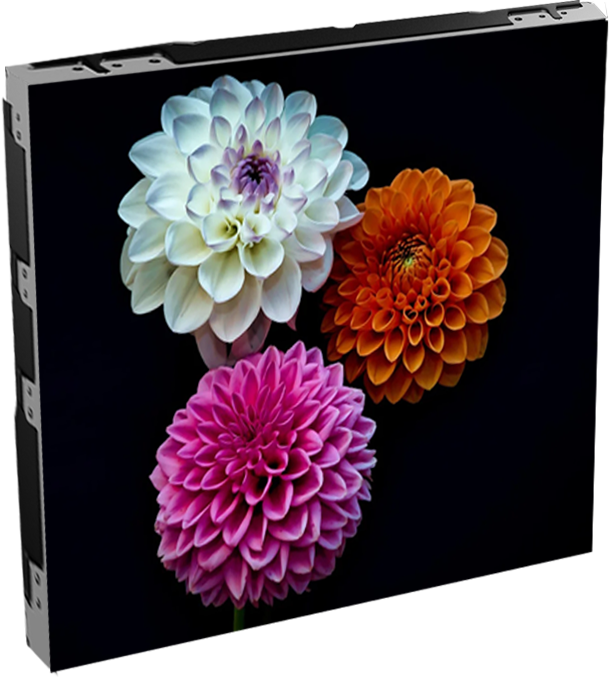

The LEDMAN X Series is a slim, high-precision indoor fixed LED display designed for corporate, retail, and control room environments. Its ultra-thin cabinet and front maintenance make it perfect for premium indoor installations.

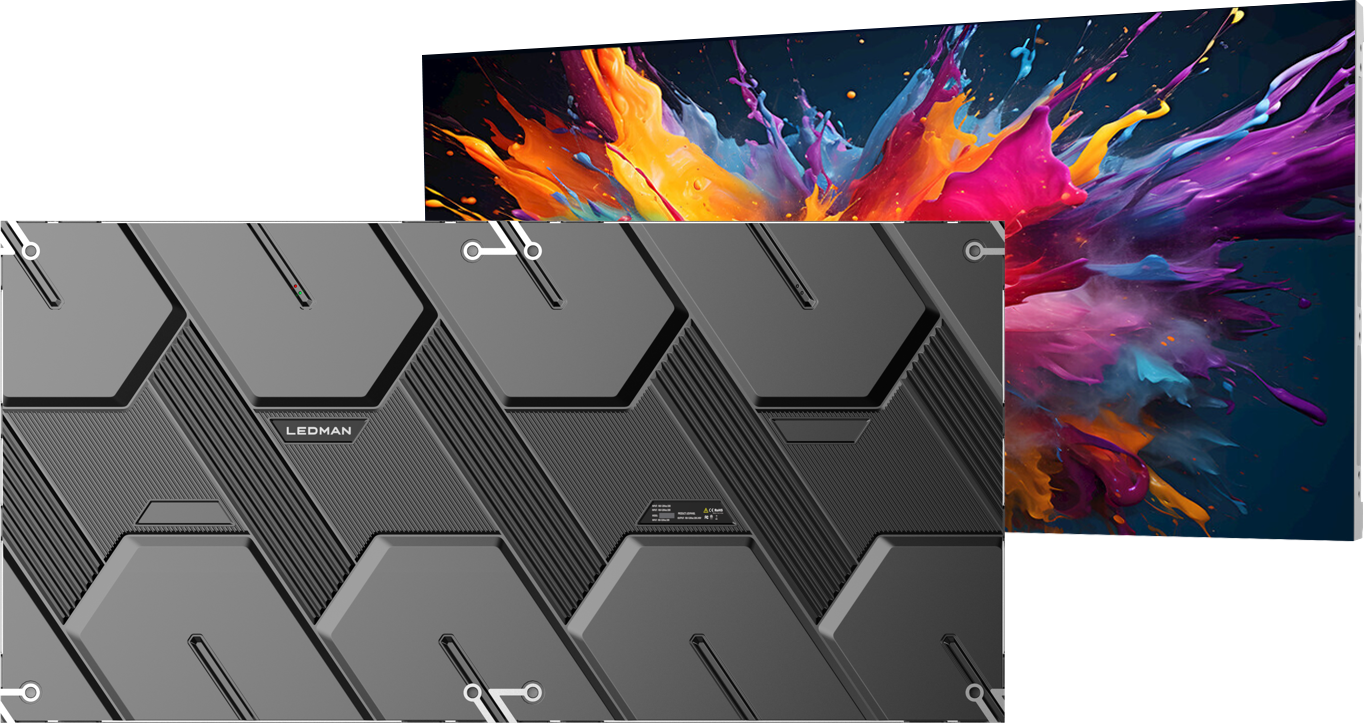

Cabinet size: 1000 × 500 × 48 mm

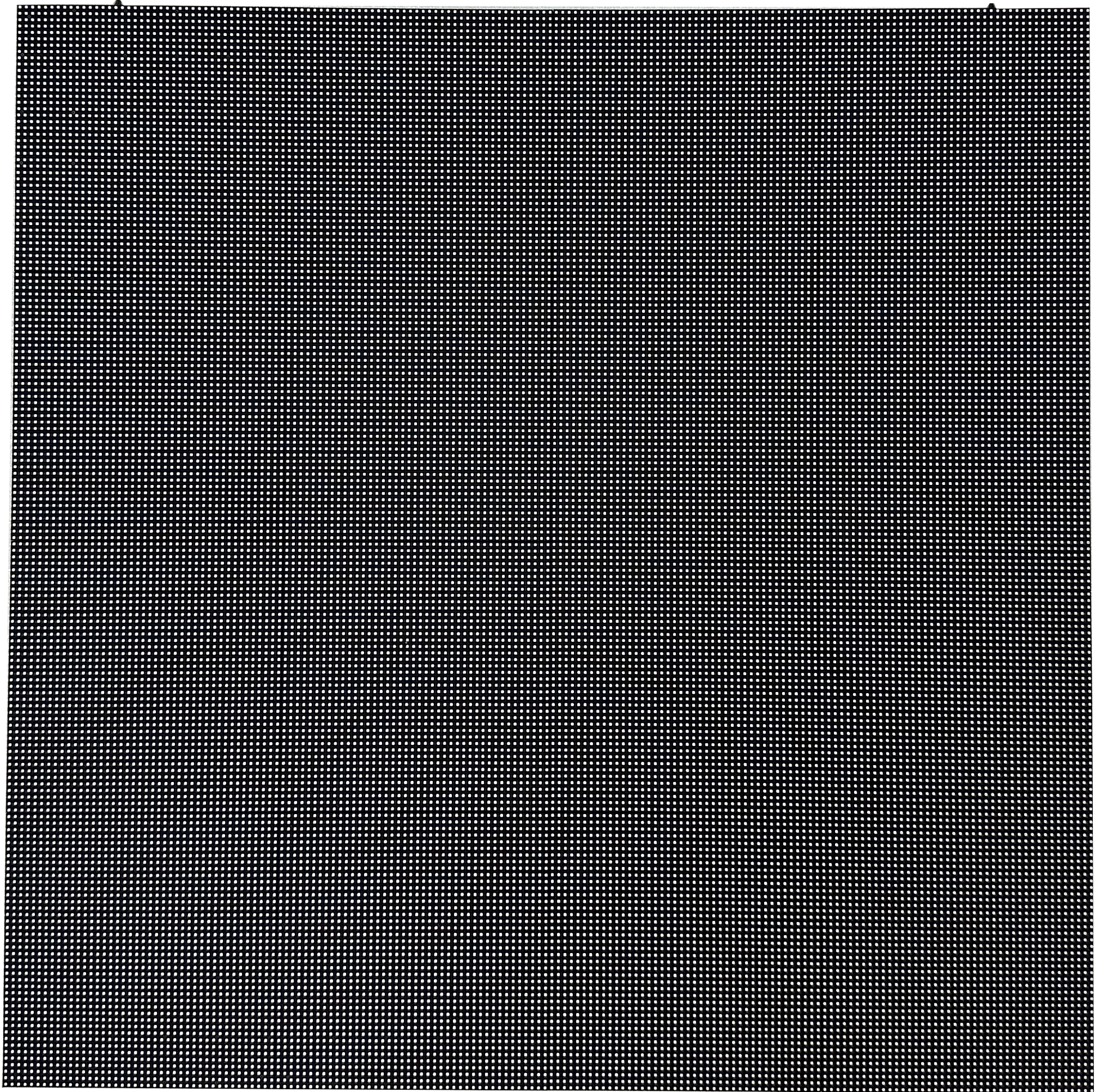

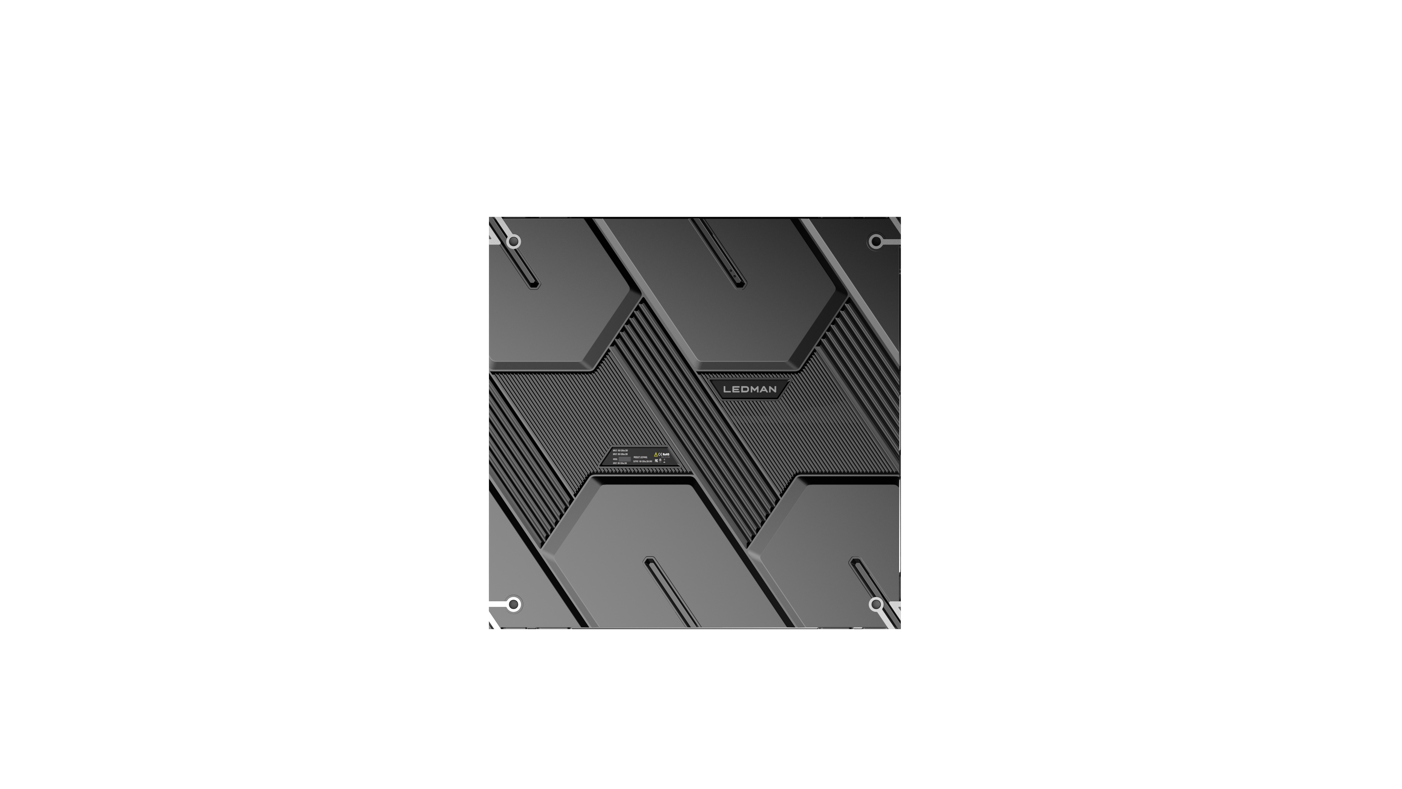

Module size: 250 × 250 mm (universal, no A/B type)
Pixel pitch options: 1.56 mm, 1.95 mm, 2.4 mm, 2.9 mm, 3.91 mm, 5.95 mm
LED types: SMD1212, SMD1415, SMD2121, SMD2020
Refresh rate: 5100–7680 Hz
Grayscale: 14–16 bit
Brightness: 800–1000 nits
Viewing angle: H 140° / V 140°
Protection: IP30
Maintenance: Front access only
Material: Die-cast aluminum
Backup: Dual receiving card + power supply supported
Certifications: CE, ETL, FCC
Ideal for: corporate offices, retail spaces, control rooms, broadcast studios, and indoor digital signage.
