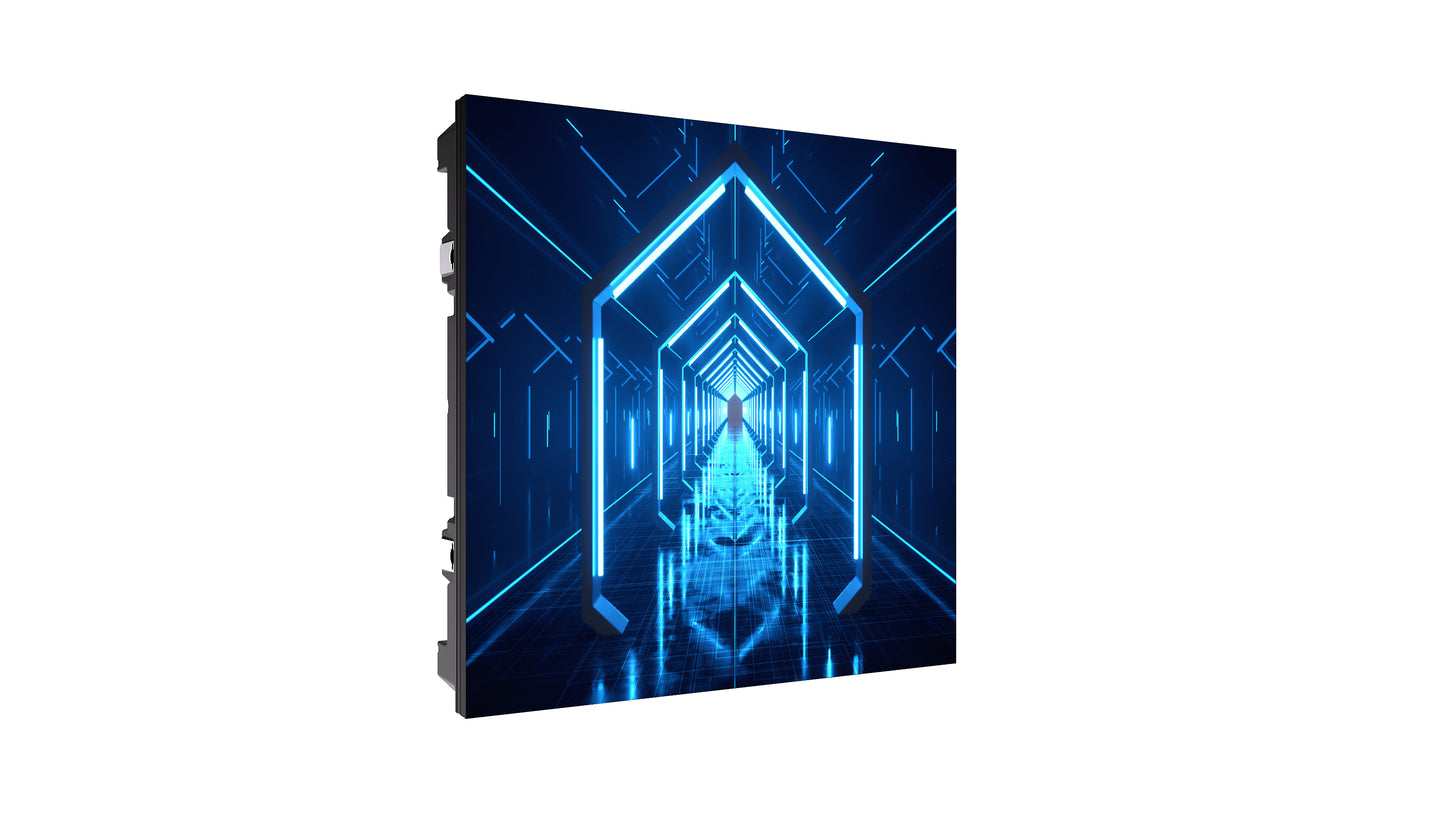

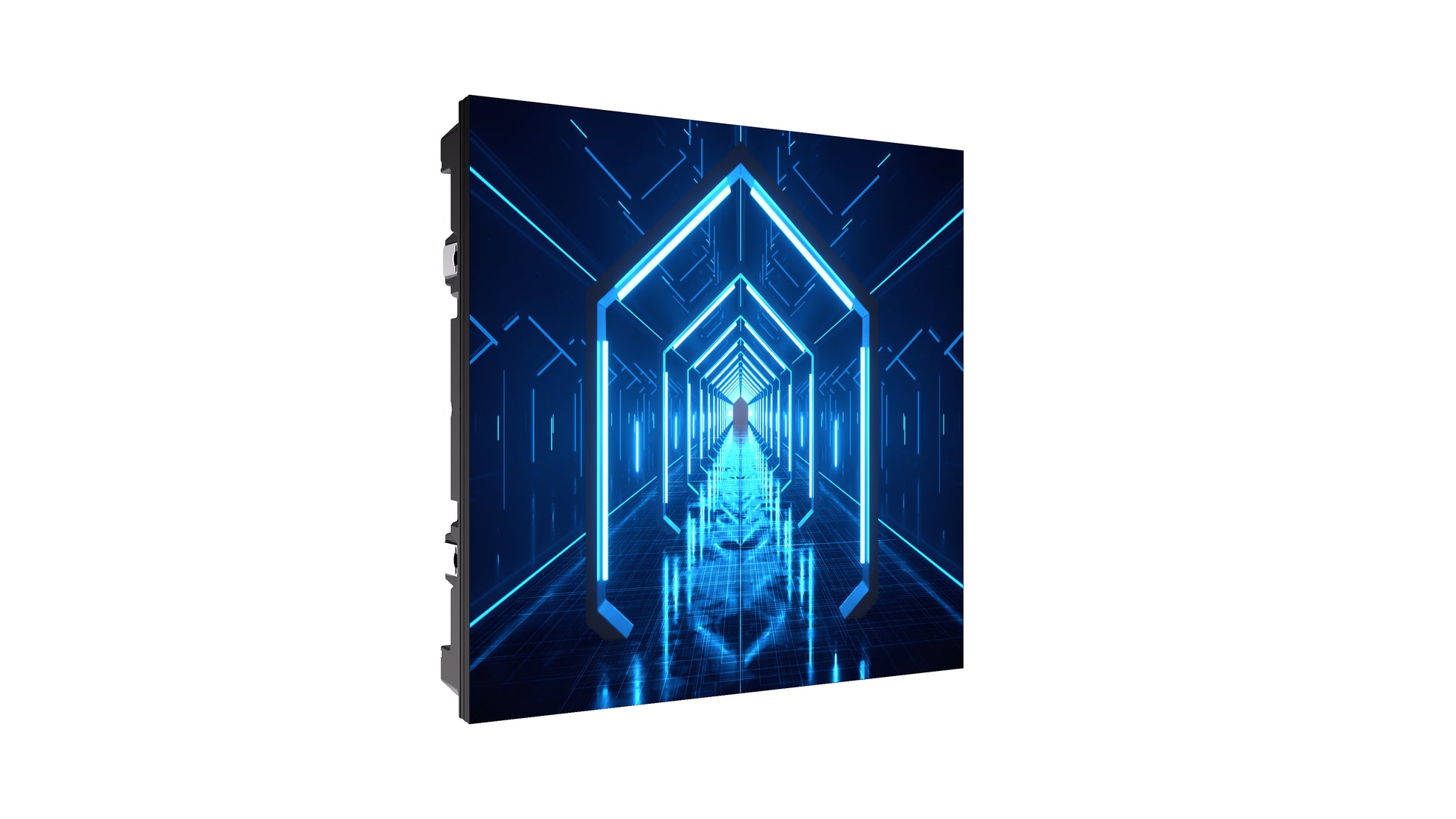

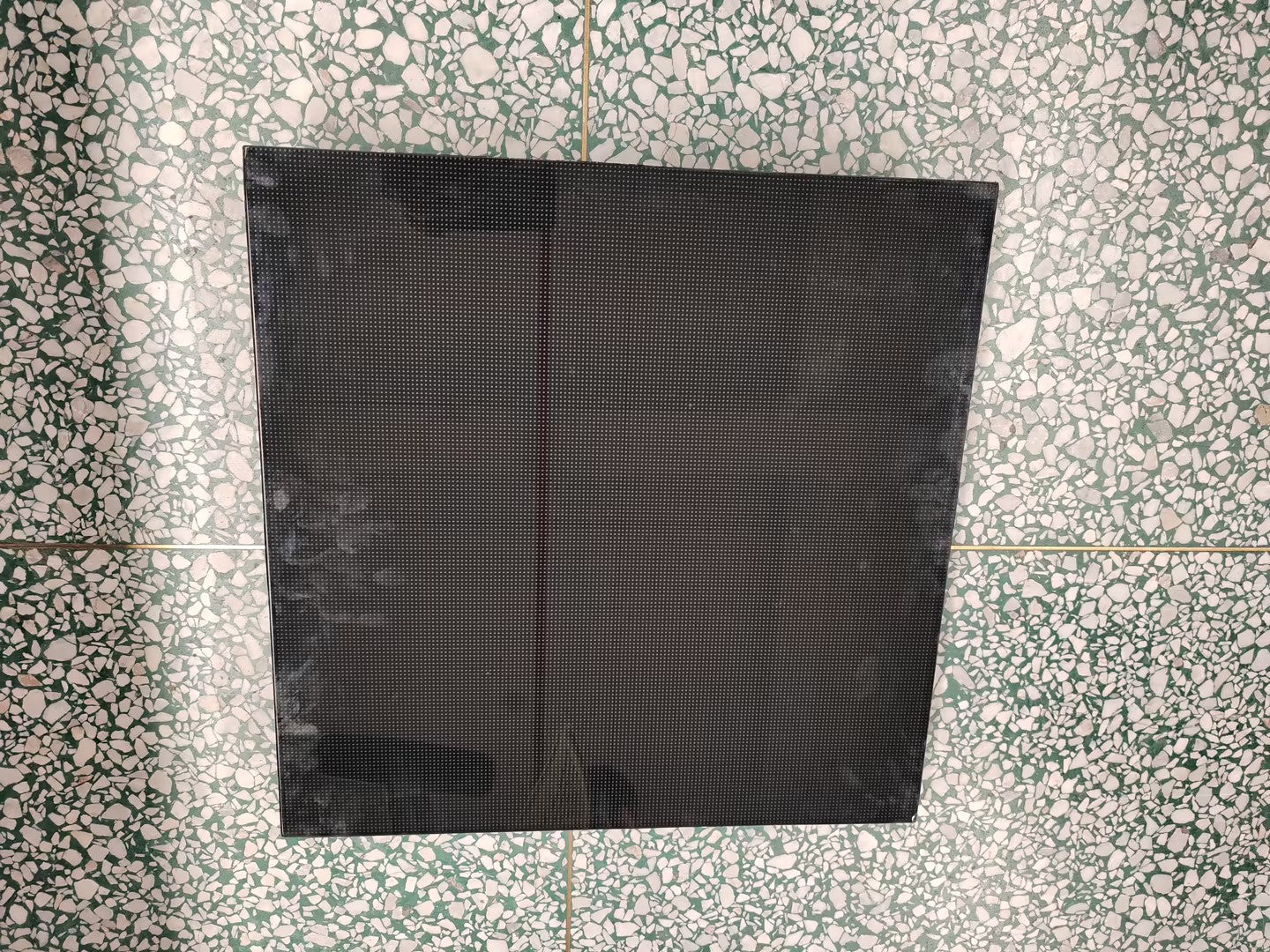

Unilumin XF 1.9 Indoor LED Dance Floor

Unilumin XF 1.9 Indoor LED Dance Floor

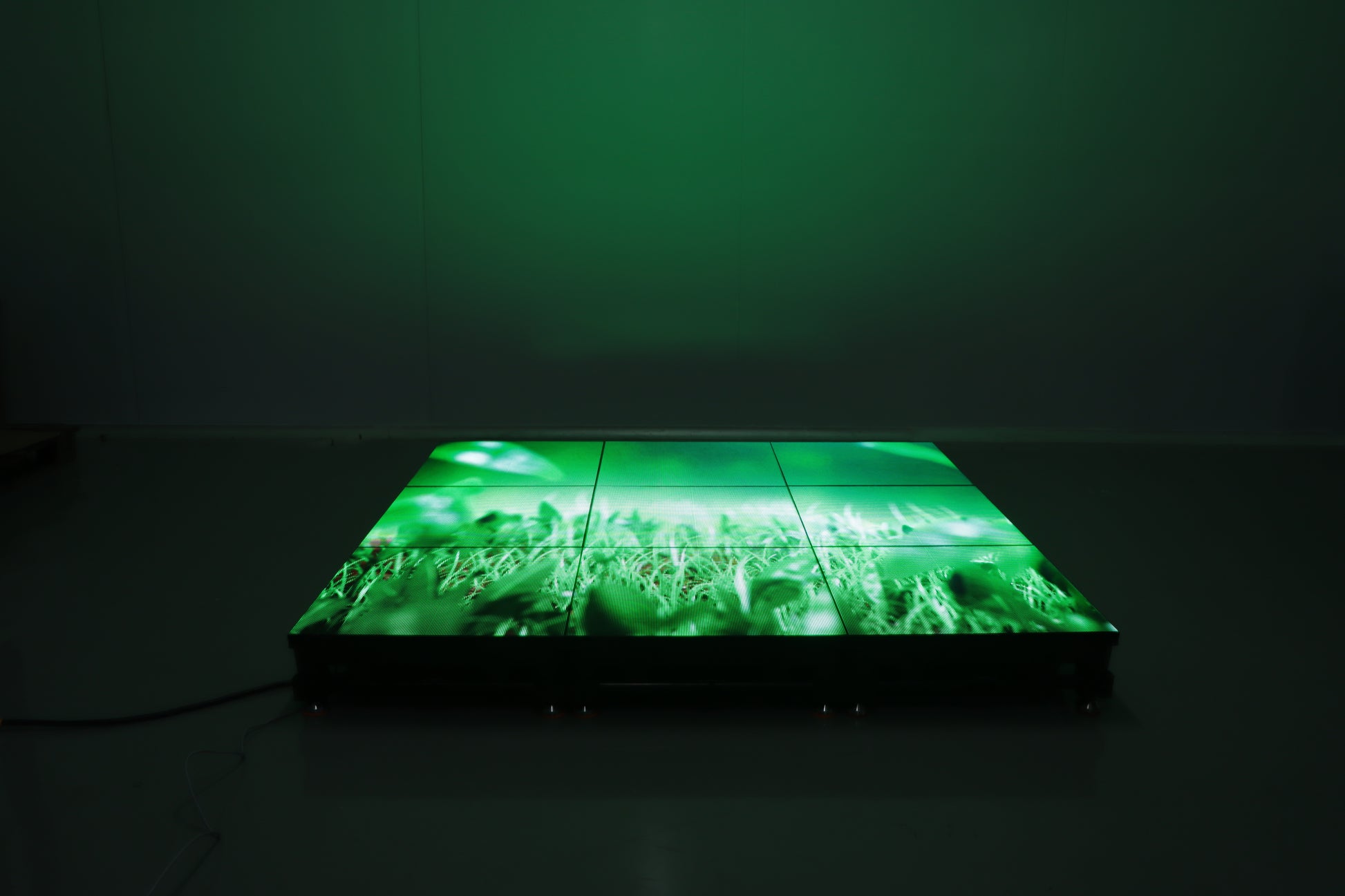

The Unilumin XF 1.9 is a robust indoor LED dance floor and interactive floor display built for events, experiential marketing, immersive simulators, and permanent installations.

  • Pixel Pitch: 1.9mm (indoor)
  • Resolution: 262,144 dots/m²
  • LED Type: 3-in-1 Black SMD
  • Cabinet Size: 500 × 500 × 79 mm
  • Cabinet Weight: 9 kg
  • Cabinet Resolution: 256 × 256 dots
  • Contrast Ratio: 6,000:1
  • Refresh Rate: 7,680 Hz
  • Scan Rate: 1/16
  • Brightness: 1,200 nits
  • Video Frame Rate: 24–240 FPS
  • Viewing Angle: H 160° / V 160°
  • Load Capacity: 2.5 T/m²
  • Input Power (Max): 130W/panel | Typical: 45W/panel
  • Maintenance: Front access
  • Connectors: Neutrik cable
  • Certifications: TUV-CE, CB, FCC, IC, UL

Ideal for: immersive simulators, virtual production, events, exhibitions, and interactive floors.

Contact us for a custom quote and configuration.
